Belt drive new build 23mm
Belt drive new build 23mm
SKU: Artikelnr.:1900-010
Couldn't load pickup availability

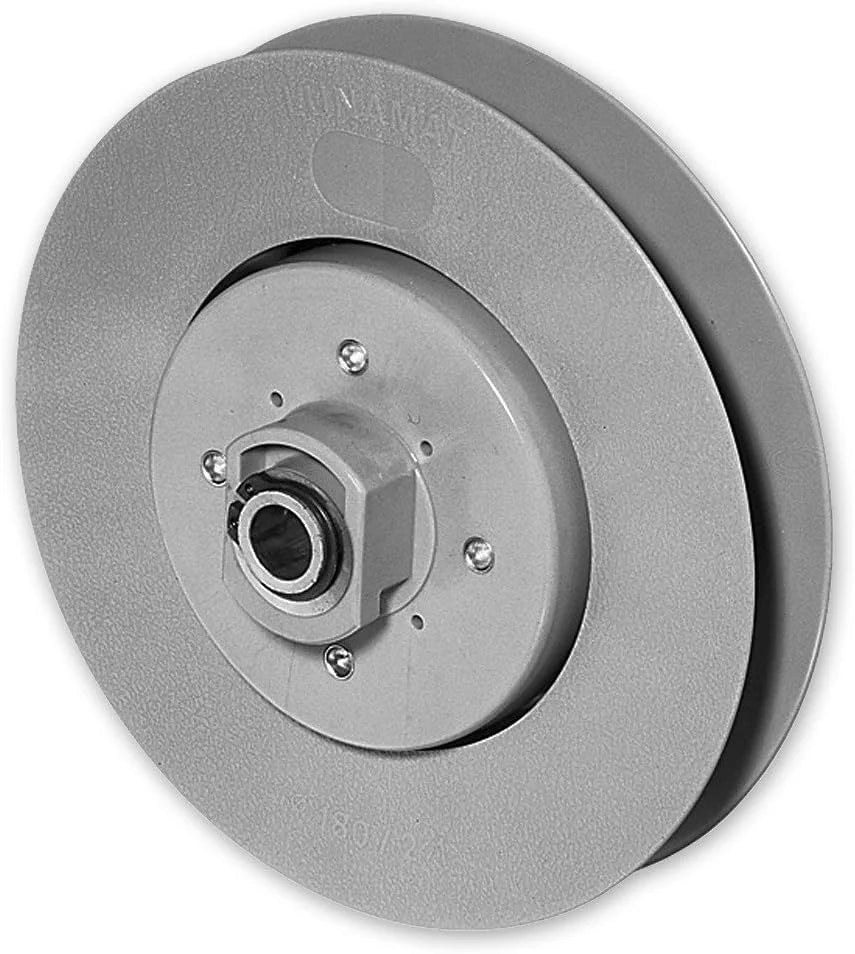

Belt drive – Efficient solutions for easy lifting of heavy roller shutters
Our belt pulleys are the ideal solution for effortlessly lifting heavy roller shutters. These belt pulleys with integrated reduction allow you to operate the roller shutter with less effort.
How it works:
- With a 2:1 reduction, you pull the shutter once while the shaft rotates twice. Without a reduction, the shaft would only rotate once. This means the shutter can be raised faster, but requires more force.

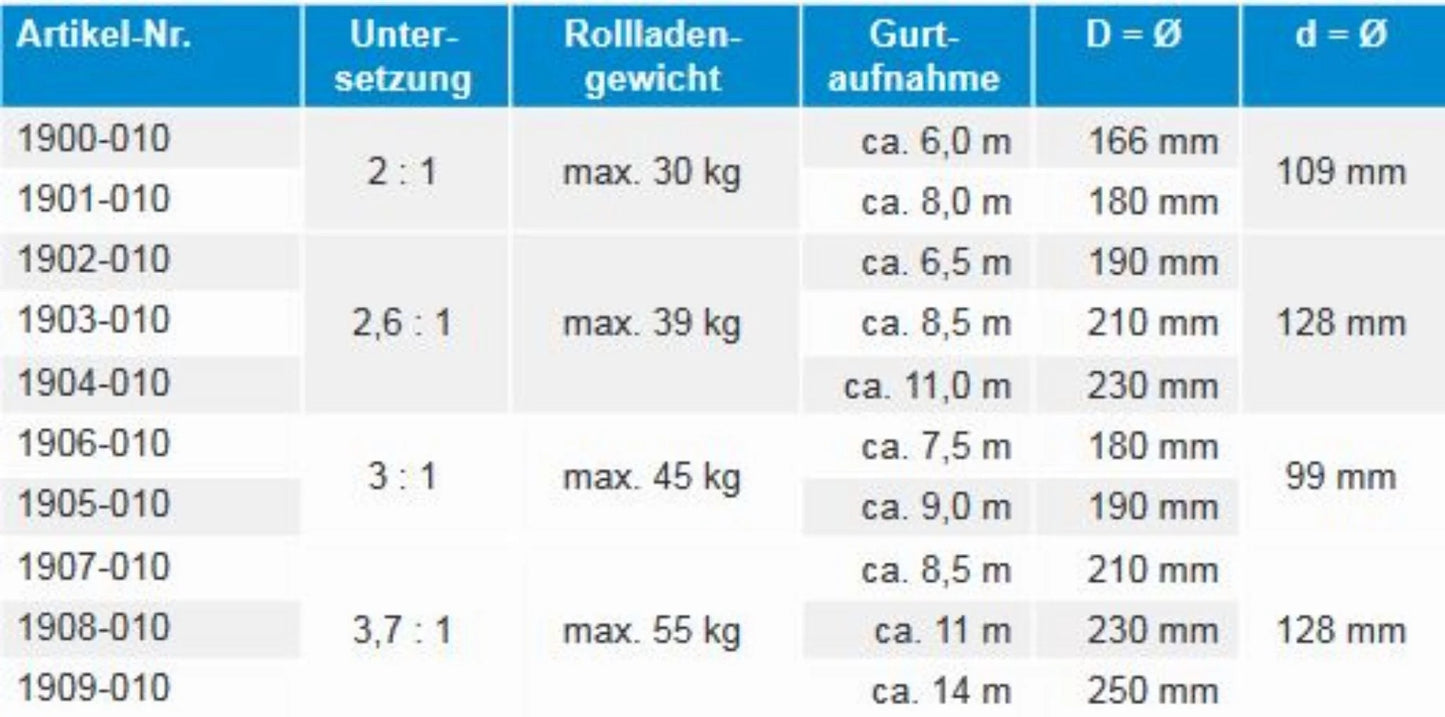

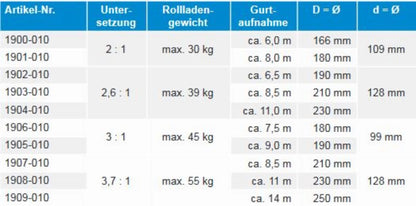

Required components (not included):
- 2:1 variant : Requires the 11 mm screw-on bearing Art.No.: 1914c-010
- 2.6:1 Variant : Requires the 21 mm bolt-on bearing Art.No.: 1915-010
- 3:1 variant : Requires the 28 mm screw-on bearing Art.No.: 1918-010
- 3.7:1 variant : Requires the 35 mm screw-on bearing Art.No.: 1919-010
- Gearbox connection : 1214-010 – For a safe and efficient connection.
Product features:
- Robust construction : Made from high-quality materials for durability and reliability.
- Easy installation : Can be used flexibly in various roller shutter systems.
Why choose our belt drive units?
With our belt drive units, you're choosing an effective solution for easing the lifting of your roller shutters. The gear reductions allow for easy operation even with heavy roller shutters, while the required components guarantee safe installation. Order now and benefit from the quality and performance of our products!
