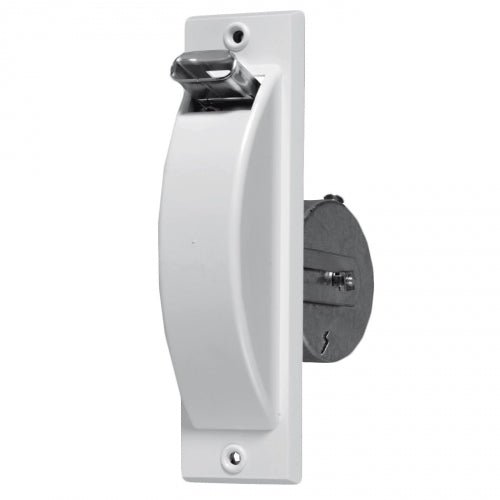

Semi-inlet belt winder

Semi-recessed belt winders – Efficient manual solutions for your roller shutters

Our semi-recessed belt winders offer the ideal solution for manually operating your roller shutters. Available in various versions, these belt winders combine functionality with an attractive design.

Variants:

• Variant 1 : Semi-inlet belt winder 6.3 m (La: 176 mm , with white hood) – without belt, article no. 1048-050 .
• Variant 2 : Half-inlet belt winder 5.0 m (La: 214 mm , white cover), article no. 1095-025 .
• Variant 3 : Semi-inlet belt winder 11.0 m (La: 260 mm , with white hood) – without belt, article no. 1049-050 .

Product features:

• Includes plastic cover : In white, ensures an attractive appearance.
• Belt width : 23 mm , suitable for common roller shutter systems.
• Adjustable spring box : The spring box can be flexibly adjusted within the adjustment range S.
• Spring not preloaded : Facilitates assembly and adjustment.
• Ø - Spring box :
  • Article no. 1048-050 : 75 mm .
  • Article no. 1095-025 : 76 mm .
  • Article no. 1049-050 : 95 mm .

Why choose our semi-inlet belt winders?
With our semi-recessed belt winders, you're choosing a high-quality and user-friendly solution for manually operating your roller shutters. They offer not only ease of use but also an elegant appearance. Order now and benefit from the functionality and reliability of our products!
